Duncan Convertible Preamp Module PCB Layouts
These are all now in .PDF format. (AutoCad R14 drawings are also
available upon request) Since printers can vary so much in their
output, I can not guarantee 100% to scale printouts. (A trip to
the copier machine to reduce or enlarge the images may be
required) Also print them at the possible resolution.

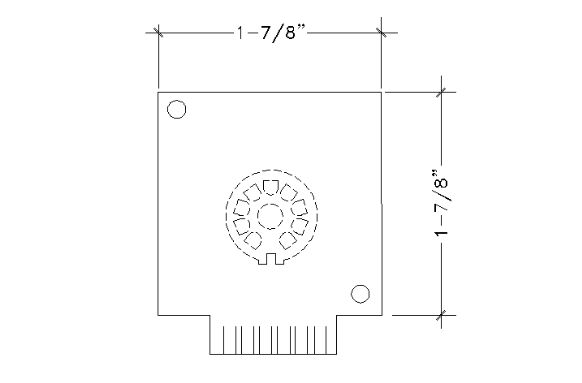

Your printed PCB layout should be 1-7/8" x 1-7/8" (not
counting the part that plugs in).
Hi-Gain, Hi-Gain +6db, Presence Module
Normal, Low-Cut Normal,
Classic, Low Cut Classic
Cascode Module
Solid State IC
Solid State FET
Classic Distortion
Combined PCB Layouts (.GIF
Format)
AutoCad R14 Drawings
